Active Material
XT VAULT's technology for manufacturing Active Material enables the production of meso-porous materials with enhanced carbon networks, elevated mass density, and improved capacity, ensuring superior performance and efficiency in energy storage applications.
Unleashing Power
Exceptional Discharge Rate Performance
Experience unparalleled energy delivery with discharge rates ranging from 0.5C to a powerful 5.0C (30A at 1.0C), tested under optimal conditions at 30°C. With a robust charge process (CC-CV, 1/3C, CV 3.65V, 1A cut-off), 30-minute rest intervals, and precision discharge to 2.0V, this technology ensures maximum efficiency and reliability for high-demand applications.

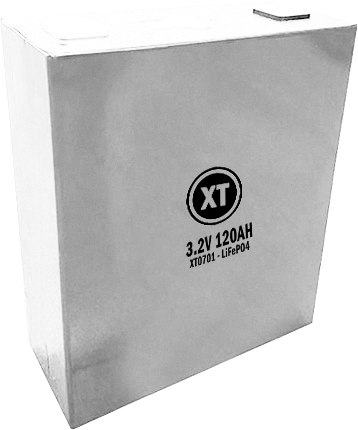

This product is a high-performance lithium-ion battery cell with a nominal capacity of 120Ah, featuring energy densities of 454Wh/L (volumetric) and 175Wh/kg (gravimetric), a nominal voltage of 3.2V, an operating voltage range of 2.2V to 4.65V, robust charge and discharge capabilities (max discharge up to 3.0C/180A for ≤ 60 seconds), and optimized for safe and reliable operation within recommended temperatures of 10°C to 40°C, with limited usability and reduced performance in extended temperature ranges.
High-Performance Energy Solution:

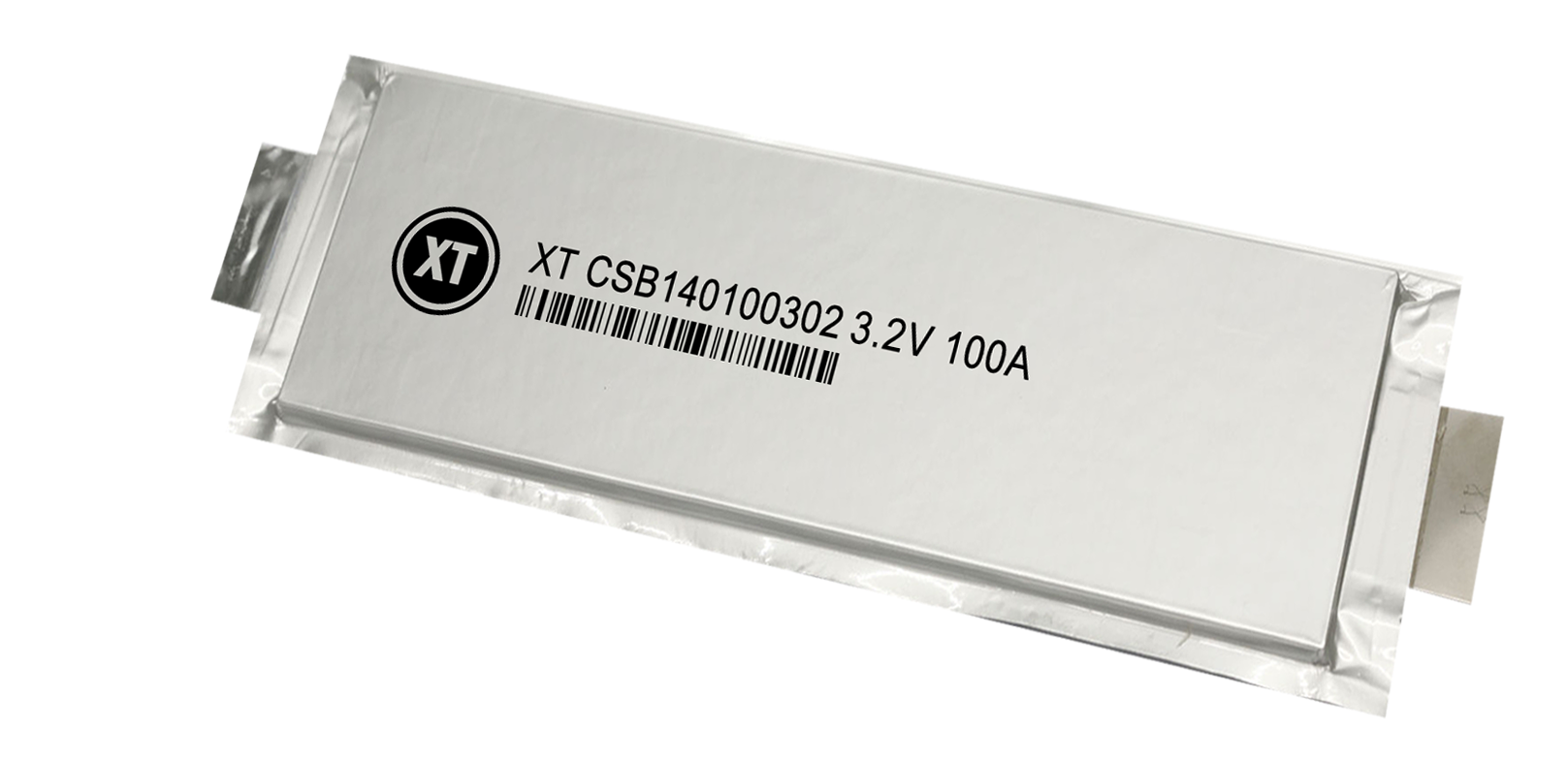

XT140100302 E60A Battery Cell
The XT140100302 E60A delivers unmatched power with a 100Ah nominal capacity, high energy densities of 454Wh/L (volumetric) and 175Wh/kg (gravimetric), and a nominal voltage of 3.2V, ensuring reliable performance across a wide operating voltage range of 2.2V to 4.65V. Engineered for versatility, it supports a standard charge/discharge of 0.3C (18A) and excels with maximum charge and discharge currents of 1.5C (90A) and 2.0C (120A), alongside a pulse discharge capacity of 3.0C (180A) for peak demand scenarios. Optimized for temperature ranges between 10°C to 40°C, the cell remains operational under extreme conditions, ensuring consistent performance with minimal impedance (<2.0mΩ). Its lightweight and compact design (12.3mm x 120mm x 540mm) make it ideal for high-density energy storage solutions, setting a benchmark in efficiency and reliability.
XTM23014.6 Series Lithium Iron Phosphate Battery Module:
Powering Reliable Performance
The XTM23014.6 series lithium iron phosphate (LiFePO4) battery module features a 3P16S configuration, delivering a nominal voltage of 51.2V and a usable energy capacity of 4.6kWh, making it ideal for telecommunications and network equipment backup. Its robust design includes dimensions of 437x622.4x133.5mm and operates efficiently across a temperature range of 0°C to 45°C (charge) and -20°C to 45°C (discharge), with limited functionality down to -30°C. Equipped with an advanced intelligent Battery Management System (BMS), it prevents overcharge, over-discharge, overcurrent, and overheating while enhancing pack consistency through battery equalization, ensuring high safety, extended service life, and flexible scalability with multi-group parallel connections for diverse power system applications.
10.7kWh LiFePO4 Residential Battery System
Efficient and Customizable Energy Solution
Designed for residential energy storage systems (ESS), this 10.7kWh LiFePO4 battery system offers affordable, reliable, and scalable solutions for private households. Featuring functions like peak shaving, UPS/grid interface, and stand-alone mode, the system provides flexibility to meet diverse energy needs. It supports remote control, schedule settings, and customizable specifications, ensuring adaptability to unique customer requirements. With a 3000W rated output power, 4500W peak output, and 210Ah battery capacity, it guarantees high performance while maintaining efficiency at 89% ± 2%. The wall-mountable or stand-alone design, IP x4 protection rating, and compatibility with 200–240VAC and 50/60Hz ensure seamless integration into any home setup, empowering households with sustainable energy management.
Advanced HVAC and Fire Suppression Solutions for XT INDUS Energy Systems
Efficient and Customizable Energy Solution
The XT INDUS series, available in two configurations—XT INDUS 500 (up to 500kWh) and XT INDUS 3000 (up to 3MWh)—features cutting-edge HVAC systems and dual fire suppression technologies to ensure safe and efficient operation.
HVAC System:
The door-mounted HVAC layout incorporates a topside cooling air damper, directing cooling air efficiently from the topside to the backside of racks for rapid module cooling. With a cooling capacity of 71.5kW and heating capacity of 4.8kW, the system ensures optimal thermal management for high-performance energy storage systems.
Fire Suppression System I: Water Injection System
Designed for LG Ensol's U.S. ESS projects, this system leverages a mineral wool-insulated module with calculated heat transfer of 204W, rapidly extinguishing fires by spraying water within the module to prevent flame spread.
Fire Suppression System II: Gas Extinguishing System (FM-200®)
Using HFC-227ea gas with a design density of 7% for Class C fires, this system provides rapid extinguishing in areas up to 19.5m² and volumes of 52m³, ensuring comprehensive fire safety with a 25kg extinguishing agent.
Both fire suppression systems activate seamlessly through sensor detection, control panel signaling, and automated valve operation, guaranteeing fast and effective fire mitigation. The XT INDUS series delivers unmatched safety, scalability, and performance for high-capacity energy storage solutions.
EV
XT VAULT LFP Battery: A Revolutionary Solution for Electric Vehicles (EVs)
The XT VAULT LFP battery offers a groundbreaking solution for EVs with its exceptional energy density, safety, and long lifecycle. Utilizing advanced Lithium Iron Phosphate (LiFePO4) technology, it ensures superior thermal stability and resistance to overcharging, making it ideal for the high safety standards required in EV applications. The battery’s high discharge rate capability and fast charging support enable optimal performance for extended ranges and quick turnaround times. Moreover, its lightweight yet durable design enhances vehicle efficiency, while the eco-friendly manufacturing process aligns with the global push for sustainable mobility solutions.
ESS
XT VAULT LFP Battery: Transformative Technology for Energy Storage Systems (ESS)
The XT VAULT LFP battery is revolutionizing ESS applications with its high reliability, scalability, and unmatched safety profile. Designed to provide consistent power output and long-term durability, it is perfect for residential, commercial, and utility-scale storage. With its modular design, the battery allows for seamless scalability to meet varying energy demands, while its advanced Battery Management System (BMS) ensures precise monitoring and protection against overcharge, over-discharge, and overheating. Offering a high cycle life and superior efficiency, the XT VAULT LFP battery supports renewable energy integration, peak shaving, and grid stabilization, empowering users to achieve sustainable and cost-effective energy management.
